Ceres Solver vs GTSAM vs g2o vs NLopt in 2026: Which Nonlinear Optimization Library Should You Actually Use?

Your bundle adjustment job is 40% of the way through a 3,000-image photogrammetry run, and it has been stuck on the same residual norm for eleven minutes. You picked the wrong solver stack. Nonlinear optimization libraries are not interchangeable: a library built for small dense problems will happily eat 32 GB of RAM on a sparse pose graph, and a graph optimizer tuned for robotics will refuse to accept the generic constraint you need.

This guide compares the four libraries that actually show up in 2026 production systems — Ceres Solver (4,580★, updated 2026-10-11), GTSAM (3,739★, 2026-10-10), g2o (3,471★, 2026-10-05), and NLopt (2,280★, 2026-06-06) — with real install commands pulled from their repositories and honest notes on where each one falls apart.

TL;DR: The 30-Second Verdict

• General-purpose least squares, robust loss functions, huge sparse problems → Ceres Solver. It is the default answer for 80% of engineering teams, and the automatic differentiation plus loss-function library is what you are really choosing it for.
• Robotics, SLAM, sensor fusion, incremental solving → GTSAM. Factor graphs and iSAM2 are a different data model, not just a different API.
• Teaching, research codebases, ORB-SLAM-style pipelines → g2o. Lightweight, easy to read, ships a viewer, and is already the substrate of several well-known SLAM systems.
• Black-box objectives, no gradients, many free algorithms, small parameter counts → NLopt. Forty-plus algorithms behind one tiny API, but no sparsity support and no factor-graph machinery.

If you only remember one line: Ceres for sparse numerical work, GTSAM for probabilistic robotics, g2o for research, NLopt for derivative-free problems.

The Contenders at a Glance

Two numbers worth internalizing: Ceres was pushed the same day this article was written, GTSAM the day before. This is not a dead-tool comparison — every one of these projects is actively maintained in 2026.

Use-Case Decision Matrix

Ceres Solver — The General-Purpose Workhorse

Ceres has been in production at Google since 2010 and the API shows it: the problem/solver split, the CostFunction abstraction, and the built-in loss functions are what every other C++ least-squares library gets compared against. It requires Eigen (3.3+), and optionally glog, gflags, and SuiteSparse for the sparse linear solver backends.

Build from source (official repository):

1
2
3
4
5

git clone https://github.com/ceres-solver/ceres-solver.git
cd ceres-solver
cmake -S . -B build -DBUILD_TESTING=OFF -DBUILD_EXAMPLES=OFF
cmake --build build -j"$(nproc)"
sudo cmake --install build

Distributions also ship packaged builds (libceres-dev on Debian/Ubuntu, ceres-solver in Homebrew). For a first problem, the canonical example from the Ceres tutorial is two dozen lines:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

#include <ceres/ceres.h>

struct CostFunctor {
  template <typename T>
  bool operator()(const T* const x, T* residual) const {
    residual[0] = T(10.0) - x[0];
    return true;
  }
};

int main() {
  double x = 5.0;

  ceres::Problem problem;
  ceres::CostFunction* cost =
      new ceres::AutoDiffCostFunction<CostFunctor, 1, 1>(new CostFunctor);
  problem.AddResidualBlock(cost, nullptr, &x);

  ceres::Solver::Options options;
  options.linear_solver_type = ceres::DENSE_QR;
  options.minimizer_progress_to_stdout = true;

  ceres::Solver::Summary summary;
  ceres::Solve(options, &problem, &summary);
  return 0;
}

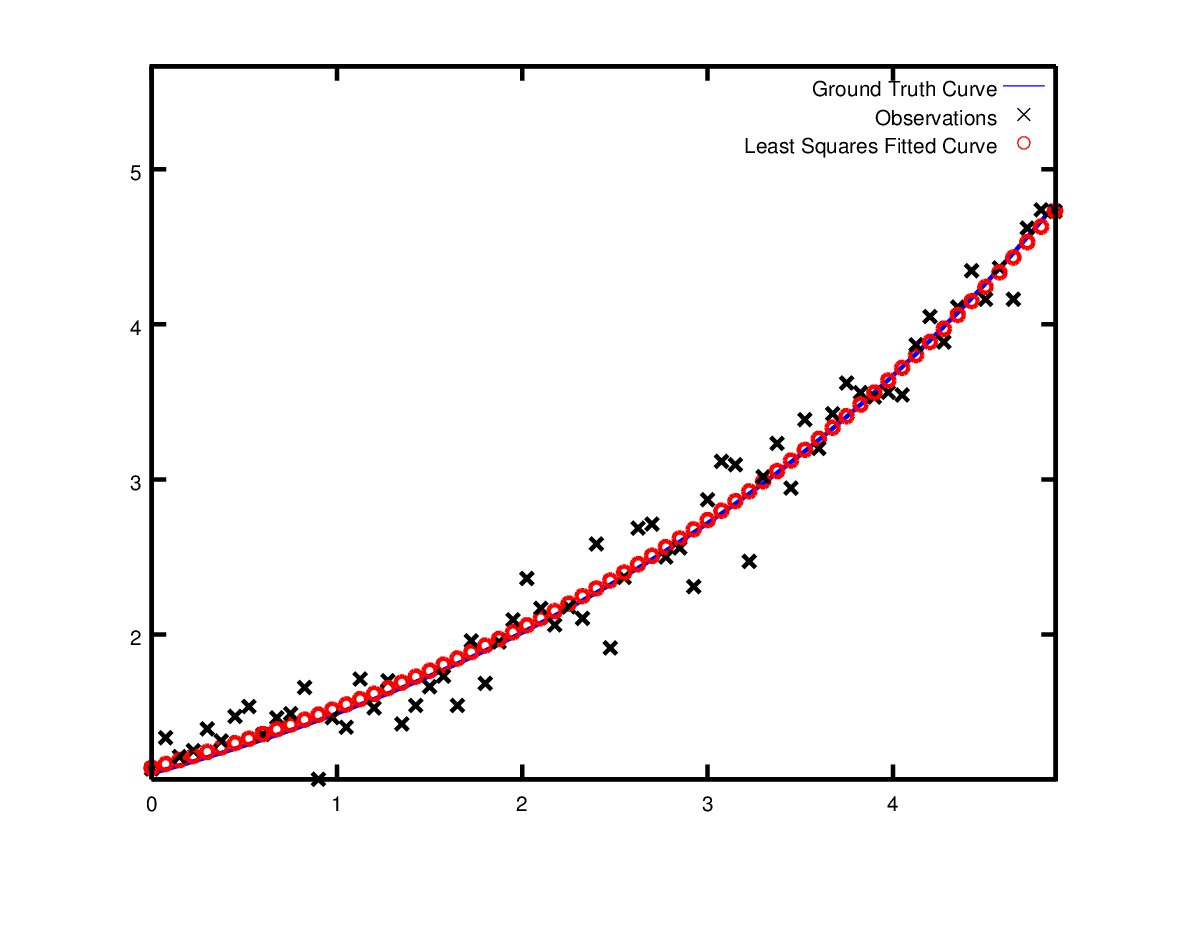

The automatic differentiation is the feature you are quietly buying. You write the residual as templated C++ and Ceres generates the Jacobian — no analytic derivation, no finite-difference accuracy loss. For residual blocks where you do know the closed form, SizedCostFunction still lets you hand-write the Jacobian and claw back 2–4x in wall-clock time.

Choose Ceres when: your problem is “minimize a sum of squared residuals”, the parameter count is in the thousands to millions, and the Jacobian is sparse.

GTSAM — Factor Graphs for Robotics

GTSAM models the world as a factor graph: variables are nodes, measurements are factors, and inference is done on a Bayes tree. That structural difference is the reason GTSAM wins on incremental problems — when a new measurement arrives you update the affected part of the tree instead of re-solving from scratch. ISAM2 is the workhorse.

Build from source (instructions taken from the repository’s README):

1
2
3
4
5
6
7

sudo apt-get install libboost-all-dev   # optional, several factors require it
sudo apt-get install libtbb-dev         # parallelization, on by default

git clone https://github.com/borglab/gtsam.git
cd gtsam
cmake -S . -B build
cmake --build build --target install

The solve loop is deliberately small — the complexity lives in how you build the graph:

1
2
3
4
5
6
7
8
9

#include <gtsam/nonlinear/NonlinearFactorGraph.h>
#include <gtsam/nonlinear/LevenbergMarquardtOptimizer.h>

gtsam::NonlinearFactorGraph graph;
// graph.emplace_shared<...>(...) for each measurement

gtsam::Values initialEstimate;
gtsam::LevenbergMarquardtOptimizer optimizer(graph, initialEstimate);
gtsam::Values result = optimizer.optimize();

GTSAM is also the heaviest dependency of the four: Boost plus TBB plus a large template-heavy codebase means a full build from source is a coffee break, not a make -j4 moment. Budget for it, or use a prebuilt package where one exists for your distribution.

g2o — The Graph Optimizer Inside ORB-SLAM

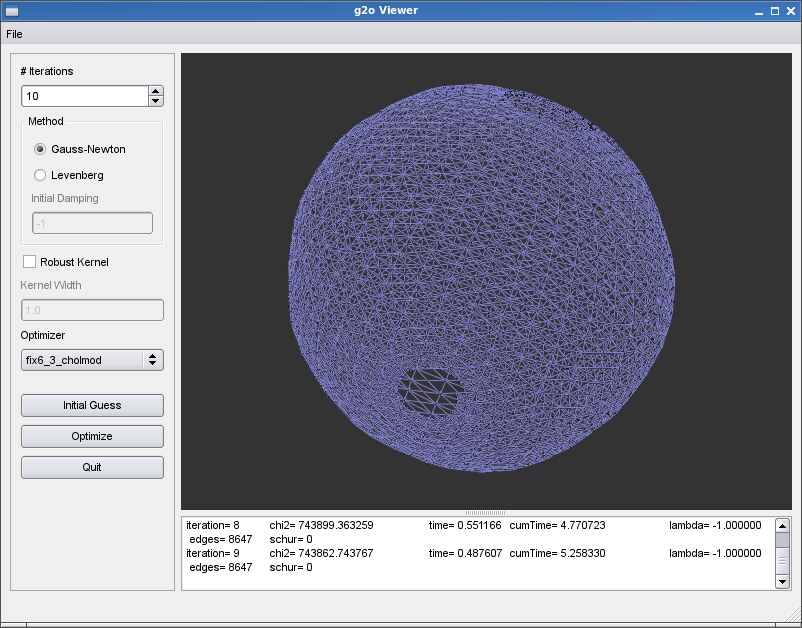

g2o (General Graph Optimization) is a hypergraph-based optimizer and the optimization backend behind several landmark visual SLAM systems. Its selling point in 2026 is not features but legibility: the examples are compact, the classes are small, and the included viewer makes a converged pose graph visible in seconds — which is exactly what you want when debugging a loop closure.

Install with distribution dependencies (command taken from the project README):

1
2
3
4
5
6
7

sudo apt install libeigen3-dev libspdlog-dev libsuitesparse-dev \
  qtdeclarative5-dev qt5-qmake libqglviewer-dev-qt5

git clone https://github.com/RainerKuemmerle/g2o.git
cd g2o && mkdir build && cd build
cmake ..
make -j"$(nproc)"

The trade-off is explicit: g2o expects analytic Jacobians. You derive them yourself and encode them in an Edge subclass. That is excellent for understanding the math and terrible for shipping fast — which is precisely why Ceres and GTSAM exist.

NLopt — 40+ Algorithms Behind One API

NLopt is a different animal. It is not a least-squares library; it is a unified wrapper over dozens of optimizers — local gradient-based (L-BFGS, MMA, SLSQP, TNewton), local derivative-free (COBYLA, BOBYQA, Nelder-Mead, PRAXIS), and global (DIRECT, CRS, MLSL, ESCH). One interface, many algorithms, and you switch algorithm families by changing a single enum.

1
2
3

pip install nlopt          # Python bindings
# C/C++: build from source per the official installation instructions
# Julia: using Pkg; Pkg.add("NLopt")

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

import nlopt
import numpy as np

def objective(x, grad):
    if grad.size > 0:
        grad[:] = [2.0 * (x[0] - 3.0), 2.0 * (x[1] + 1.0)]
    return (x[0] - 3.0) ** 2 + (x[1] + 1.0) ** 2

opt = nlopt.opt(nlopt.LD_LBFGS, 2)
opt.set_min_objective(objective)
opt.set_lower_bounds([-10.0, -10.0])
opt.set_upper_bounds([10.0, 10.0])
opt.set_xtol_rel(1e-8)
x_opt = opt.optimize([0.0, 0.0])

The catch: NLopt is dense-only and has no notion of sparsity, blocks, or factor graphs. Feed it a 10,000-variable bundle adjustment and you will watch memory climb linearly while the solver does dense linear algebra. It is the right tool for a 12-parameter physical model, a hyperparameter search, or an objective that only exists as a compiled simulator.

Performance, Build Cost, and Licensing Reality Check

Three practical axes that decide more projects than benchmarks do:

1. Build weight. Ceres builds in minutes on a normal machine. GTSAM is heavy (Boost + TBB + deep templates). g2o is light but drags Qt in when you enable the viewer. NLopt compiles in seconds.
2. Convergence behavior. All four converge on well-conditioned problems. The difference appears with outliers: Ceres’ loss functions and GTSAM’s robust noise models down-weight garbage measurements; NLopt’s algorithms assume your objective is honest, so a single bad simulator call can derail the whole run.
3. Licensing. Ceres is BSD-3-Clause, GTSAM and g2o are BSD, and NLopt is MIT with a few bundled algorithms under LGPL. If you are shipping a proprietary product this matters: GNU GSL, the other common numerical dependency, is GPL-3.0, which is why teams that cannot take a copyleft dependency migrate to Ceres or GTSAM even when GSL would technically do the job.

Pitfalls and Migration Traps

• Analytic Jacobians silently going stale. g2o and hand-written Ceres cost functions regenerate nothing automatically. Change the residual formula, forget the Jacobian, and you get slow convergence rather than a wrong answer — the worst failure mode, because it looks like a tuning problem.
• Dense solver choices on sparse problems. Setting DENSE_QR in Ceres on a problem with thousands of poses is the single most common performance mistake. Use SPARSE_NORMAL_CHOLESKY or Schur-complement based options.
• Assuming GTSAM’s Python wrapper is feature-complete. The C++ API moves faster; check that the factor or noise model you need is exposed before committing to a Python-only architecture.
• Assuming NLopt will scale. It will not. Move to Ceres/GTSAM the moment parameter count crosses a few hundred.
• Forgetting that these are libraries, not services. If you want a hosted optimizer endpoint, you are building it yourself — wrap the C++ binary in a small queue worker and expose it over your own API.

Why This Matters for Self-Hosted Mapping and Simulation Stacks

Every photogrammetry pipeline, robot fleet, and sensor-fusion deployment built on your own hardware eventually needs a solver it can run locally — no cloud credits, no per-request pricing, no data leaving the machine. That is the same argument that pushed teams toward self-hosted scientific tooling elsewhere: run the mesh, PDE, and geometry stages on hardware you control.

• For the finite-element side of the pipeline, see our finite element analysis comparison.
• When the linear algebra inside your solver becomes the bottleneck, the sparse linear solver comparison covers the backends Ceres and GTSAM delegate to.
• For spatial indexing and geometry queries that feed these optimizers, our computational geometry libraries guide walks through the alternatives.

FAQ

Which nonlinear optimization library should I start with in 2026? Start with Ceres Solver. It has the widest workload coverage, the best documentation, automatic differentiation that removes an entire class of bugs, and a direct upgrade path to sparse solvers when your problem grows. Only switch when you have a specific reason: incremental inference (GTSAM), teaching/research readability (g2o), or derivative-free black-box objectives (NLopt).

Is GTSAM better than Ceres for SLAM? For incremental SLAM — where measurements arrive continuously and you want to update without re-solving everything — yes, GTSAM’s Bayes tree and iSAM2 are structurally better suited. For batch bundle adjustment on a fixed dataset, Ceres is typically easier to set up and just as accurate. The data model, not raw speed, is usually the deciding factor.

Does NLopt support sparse problems or large parameter counts? No. NLopt is a dense optimizer collection. It is excellent below a few hundred variables and unsuitable above. If you are optimizing camera poses or a large sensor network, use Ceres Solver or GTSAM instead — NLopt will consume memory linearly and slow to a crawl.

Which of these libraries are safe for a commercial closed-source product? Ceres Solver (BSD-3-Clause), GTSAM (BSD) and g2o (BSD) are all permissive and safe to link into proprietary software. NLopt is MIT with a few algorithms under LGPL, which requires care if you statically link those specific components. By contrast, GNU GSL is GPL-3.0, so it is not usable in the same way without copyleft obligations.

Do I need to hand-write Jacobians? No for Ceres (automatic differentiation via AutoDiffCostFunction) and not usually for GTSAM. Yes for g2o, which is analytic-Jacobian by design. NLopt takes gradients optionally, and its NLOPT_GN_* algorithm family needs none at all.

How hard is it to migrate from g2o to Ceres? Usually a few days for a moderate pipeline. The graph structure maps onto residual blocks, edges become cost functions, and the Jacobians you hand-wrote turn into automatic differentiation. The real work is re-validating that your robust kernels and convergence thresholds produce comparable results, not rewriting the problem definition.
